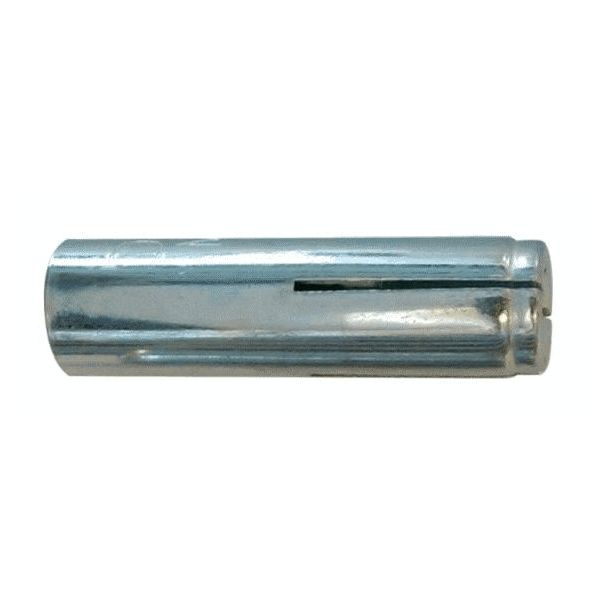

DI-PLUS M10 Drop-in anchor (zinc plated with lip) M10

• Article number: 70782

Internal threaded anchor without collar for hanging from threaded rods in concrete. Due to the lack of a collar, it is easy to lubricate in the wall for temporary attachments. Install only with matching Sympafix impact pin. The drop-in anchor is correctly installed once the flared edge of the drop-in pin touches the collar of the anchor. ETA approved for multiple fastenings in both the tensile and compression zones of concrete. Also provided with fire approval for 120 minutes.

• ETA Part 6 approval for multiple fixings in cracked and non-cracked concrete
• Metric female thread, suitable for studs and bolts
• Available in version with and in version without collar
• Version with collar (DI-LIP-PLUS) prevents the anchor from slipping in, for example, the hollow space of hollow core slab, and at the same time ensures the correct alignment of threaded rods of equal length
• Version without collar (DI-PLUS) allows the user to 'grease away' the slightly recessed anchor in the case of temporary attachments (such as hanging from drill rigs)
• Suitable for cracked and non-cracked C12/C15 to C50/60 concrete, hollow core slab and high-density natural stone
• F120 fire approval / functional maintenance

Documents

• Technical brochurepdf - 3.11 MB
• ETA part 6 certificatepdf - 488.43 KB
• Performance Statementpdf - 115.45 KB
