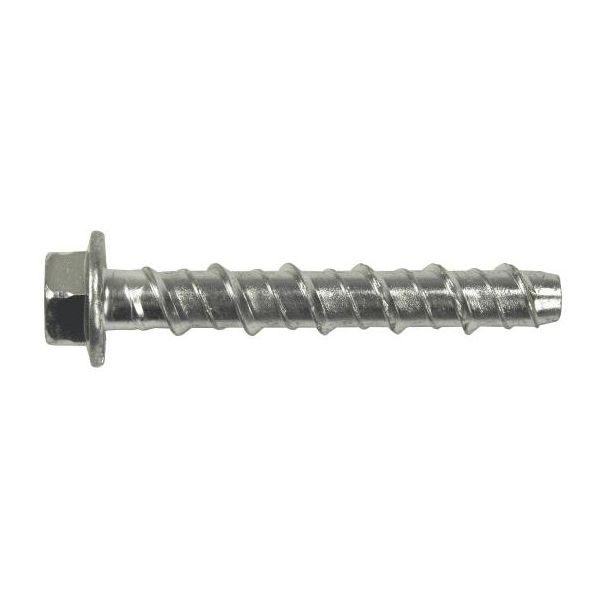

SB2-PLUS M12x120 Screwbolt 25 pack 10(12)x45/120

Product description

• ETA-1 approval for use in cracked and non-cracked concrete (galvanized version, drill diameter 8 to 14)
• First concrete screw in the world with up to 3 approved clamping thicknesses per anchor
• Also available in stainless steel A4 and dome head version
• Also available with M8 / M10 female thread with ETA approval for applications in cracked and non-cracked concrete and hollow core slabs
• Marking of diameter and anchor length on the head for easy inspection after installation
• Suitable for concrete, full brick and sand-lime brick
• Virtually tension-free: suitable for very small edge and center distances
• Integrated washer with counter-wire serrated profile for better workpiece retention
• Sawtooth profile on the gradually increasing pitch for quick installation, even in very hard concrete
• Completely removable and limited reusable in case of temporary anchoring
• Aesthetic finish
• F120 fire approval
• Fast constructive calculations possible with the free Sympafix DesignFix software

Product data

• Drill diameter: 10mm
• Length: 130mm
• Length under head: 120 mm
• Diameter : 12mm
• max. clamp thickness / useful length / Tfix : 45-60-70 mm
• Spanner width: 15 mm
• Head thickness: 10
• Washer Diameter: 23mm
• Length x width x height (box): 250x120x78 mm
• Box content : 25 pcs
• Outer box content: 100 pcs
• Number of boxes per outer box : 4 pcs
• Weight per box: 2250 grams
• Base material: Cracked concrete (tension zone), Non-cracked concrete (compression zone), Aerated concrete, Hollow core slab, Sand-lime brick / masonry
• Application: General fasteners
• ETA approval and certifications: ETA for concrete, Fire approval for 90 minutes, Fire approval for 120 minutes
• Material / corrosion: Carbon steel galvanized
• Product type: Concrete screws
• Head Configuration: Hex head
