Standard Tie Bar

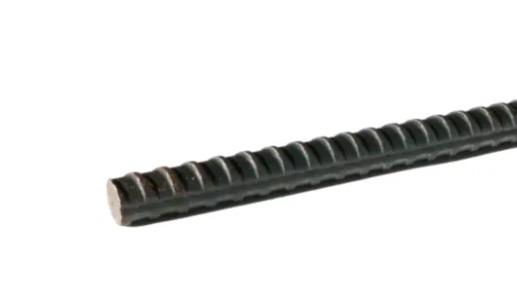

Tie Bar is a high-tensile alloy steel bar with a self-cleaning right-hand thread for quick and easy use. A cutting service is available for shorter lengths.

Grouped Product 0Types Available

Overview
Specifications
Contact Us

FTB15

Outside Dia: 17.00mm
Core Dia: 15.00mm
Slope (C): 10.00mm

FTB20

Outside Dia: 22.00mm
Core Dia: 20.00mm
Slope (C): 10.00mm

FTB26.5

Outside Dia: 30.00mm
Core Dia: 26.50mm
Slope (C): 13.00mm

Product Code	Bar Size (mm)	Length (mtr)	Safe Working Load (kN)	Fail Load (kN)
FTB151.2	15	1.2	90	180
FTB151.5	15	1.5	90	180
FTB152.0	15	2	90	180
FTB153.0	15	3	90	180
FTB15	15	6	90	180
FTB201.2	20	1.2	160	320
FTB201.5	20	1.5	160	320
FTB203.0	20	3	160	320
FTB20	20	6	160	320
FTB26.5	26.5	6	300	579
FTB32	32	6	425	844
